Cameras

Arri Alexa MINI LF

  • Lens Mount

    ARRI LPL

    Sensor Resolution

    Effective: 0 Megapixel (4448 x 3096)

    Image Sensor

    36.7 x 25.54 mm (ARRI Large Format) CMOS

    Image Stabilization

    No

    Internal Recording Modes

    ARRIRAW/MXF/ARRIRAW
    4448 x 3096 up to 40 fps
    4448 x 1856 up to 60.00 fps
    3840 x 2160 up to 60.00 fps
    2880 x 2880 up to 60.00 fps
    3424 x 2202 up to 60.00 fps
    MXF/ProRes/ProRes 422/ProRes 422 HQ/ProRes 4444/ProRes 4444XQ
    4448 x 3096 up to 40 fps
    4448 x 1856 up to 60.00 fps
    3840 x 2160 up to 48.00 fps
    1920 x 1080p up to 75/100 fps
    2880 x 2880 up to 60.00 fps
    3200 x 1800 up to 75 fps
    2880 x 2160 up to 75 fps

    Show MoreExternal Recording Modes

    No

    Media/Memory Card Slot

    Slot 1: Codex Compact Drive

    Video I/O

    2x BNC (6G-SDI) Output

    Mobile App Compatible

    No

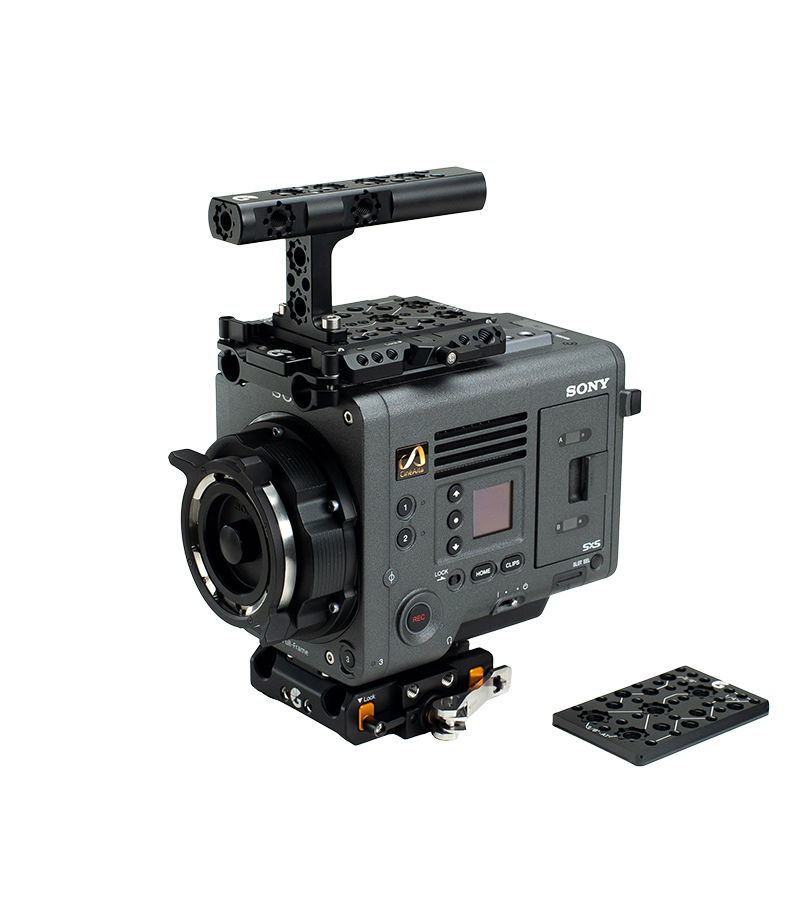

Sony Venice 6K

  • Lens Mount

    Sony E
    ARRI PL with Included Adapter

    Sensor Resolution

    Actual: 24.7 Megapixel (6042 x 4032)
    Effective: 24.4 Megapixel

    Image Sensor

    36.2 x 24.1 mm (Full-Frame) CMOS

    Internal Recording Modes

    XAVC
    4096 x 2160 up to 72 fps
    3840 x 2160 up to 72 fps
    MPEG HD422
    1920 x 1080p at 23.98/24.00/25/29.97 fps
    1920 x 1080i at 50/59.94 fps
    ProRes 422/ProRes 422 HQ/ProRes 422 Proxy
    1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
    1920 x 1080i at 50/59.94 fps

    Show MoreExternal Recording Modes

    Raw via Proprietary Module
    4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
    3840 x 2160 at 23.98/25/29.97/50/59.94 fps
    X-OCN Raw via Proprietary Module
    6048 x 4032 from 1 to 60.00 fps
    6048 x 3272 from 1 to 60.00/66/72 fps
    6054 x 3192 from 1 to 60.00/66/72 fps
    6054 x 2534 from 1 to 60.00/66/72/75/88/90 fps
    5674 x 3192 from 1 to 60.00/66/72 fps
    4096 x 3432 from 1 to 60.00/66/72 fps
    4096 x 3024 from 1 to 60.00/66/72/75 fps
    4096 x 2160 from 1 to 60.00/66/72/75/88/90/96/100/110 fps
    4096 x 1716 from 1 to 60.00/66/72/75/88/90/96/100/110 fps
    3840 x 2160 from 1 to 60.00/66/72/75/88/90/96/100/110 fps

    Show MoreMedia/Memory Card Slot

    Dual Slot: SxS

    Video I/O

    4x BNC (12G-SDI) Output
    1x BNC (HD-SDI) Output
    1x HDMI Output

    Mobile App Compatible

    No

RED V-RAPTOR 8K VV

  • Lens Mount

    Canon RF

    Sensor Resolution

    Effective: 35.4 Megapixel (8192 x 4320)

    Image Sensor

    40.96 x 21.6 mm (Full-Frame) CMOS

    Image Stabilization

    No

    Internal Recording Modes

    REDCODE HQ
    8192 x 4320 up to 59.94 fps
    6144 x 3240 up to 96 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps
    REDCODE MQ
    8192 x 4320 up to 59.94 fps
    6144 x 3240 up to 160 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps
    REDCODE LQ
    8192 x 4320 up to 120 fps
    6144 x 3240 up to 160 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps
    REDCODE RAW
    8192 x 4320 up to 120 fps
    8192 x 3456 up to 150 fps
    7168 x 3780 up to 140 fps
    7168 x 3024 up to 175 fps
    6144 x 3240 up to 160 fps
    6144 x 2592 up to 200 fps
    5120 x 2700 up to 192 fps
    5120 x 2160 up to 240 fps
    4096 x 2160 up to 240 fps
    4096 x 1728 up to 300 fps
    3072 x 1620 up to 320 fps
    3072 x 1296 up to 400 fps
    2048 x 1080 up to 480 fps
    2048 x 864 up to 600 fps

    Show MoreExternal Recording Modes

    SDI/BNC
    4096 x 2160 at 24.00/25/30.00/60.00 fps
    2048 x 1080p at 24.00/25/30.00/60.00 fps

    Media/Memory Card Slot

    Single Slot: CFexpress Type B (CFast 2.0)

    Video I/O

    2x BNC (12G-SDI) Output

    Mobile App Compatible

    No

    Battery Type

    Micro V-Mount

SONY FX6

  • Lens Mount

    Sony E

    Sensor Resolution

    Actual: 12.9 Megapixel
    Effective: 10.2 Megapixel (1420 x 802)

    Image Sensor

    Full-Frame CMOS

    Internal Recording Modes

    XAVC-I 4:2:2 10-Bit
    4096 x 2160 from 1 to 59.94 fps [240 to 600 Mb/s]
    3840 x 2160 from 1 to 59.94/100 fps [240 to 600 Mb/s]
    1920 x 1080p from 1 to 59.94/100/150/200/240 fps [89 to 222 Mb/s]
    XAVC-L 4:2:0 8-Bit
    3840 x 2160 from 1 to 59.94/100 fps [100 to 150 Mb/s]
    XAVC-L 4:2:2 10-Bit
    1920 x 1080p from 1 to 59.94/100/150/200/240 fps [35 to 50 Mb/s]

    Show MoreExternal Recording Modes

    Raw 16-Bit via SDI/BNC
    4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
    3840 x 2160 at 23.98/25/29.97/50/59.94 fps

    Media/Memory Card Slot

    Dual Slot: CFexpress Type A / SD (UHS-II)

    Video I/O

    1x BNC (12G-SDI) Output
    1x HDMI Output

    Mobile App Compatible

    No
    *As of May, 2023: Check with manufacturer for the most up-to-date compatibility

    Battery Type

    Sony BP-U Series

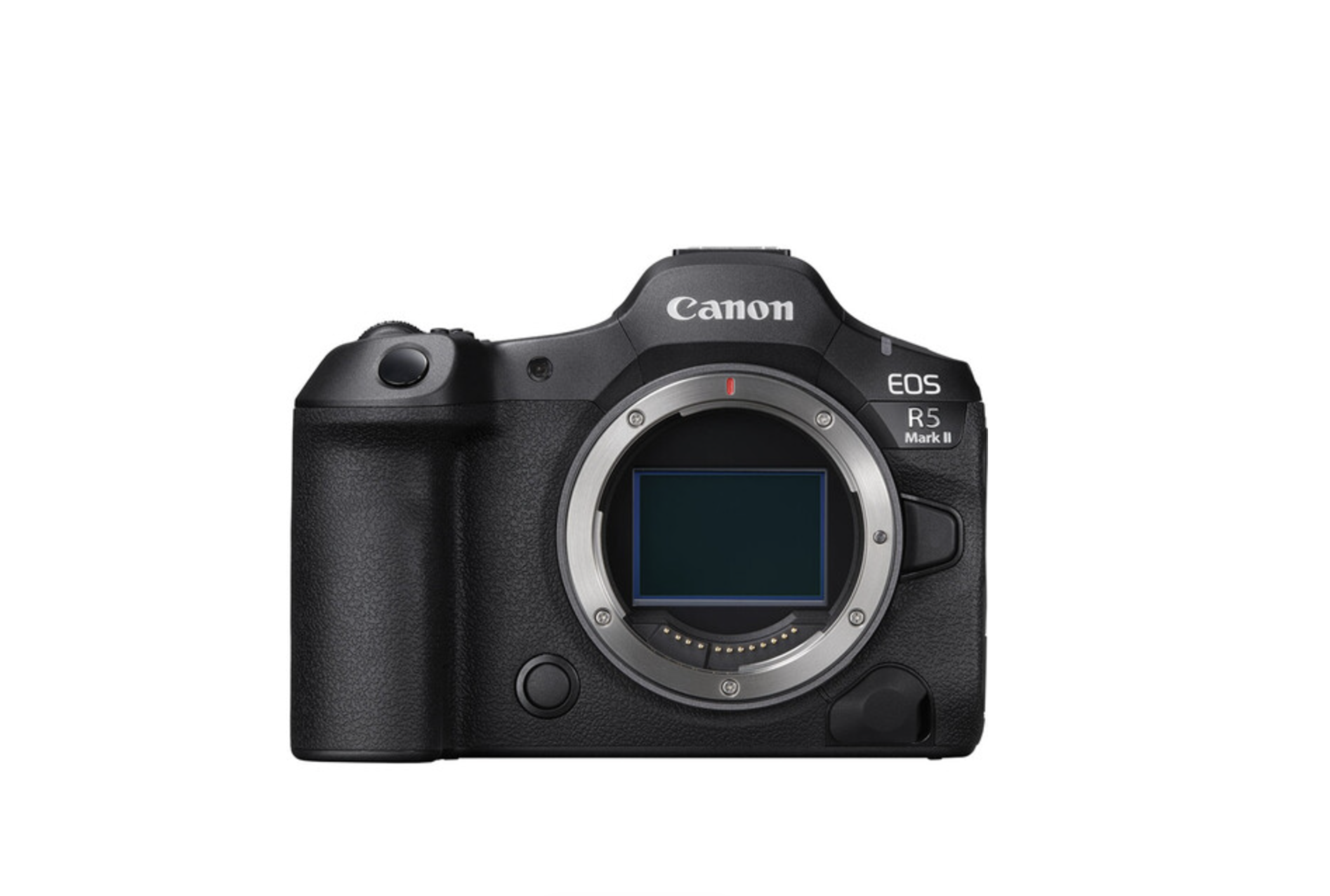

Canon EOS R5 Mark II Mirrorless Camera

  • Lens Mount

    Canon RF

    Sensor Resolution

    Actual: 50.3 Megapixel
    Effective: 45 Megapixel (8192 x 5464)

    Image Sensor

    36 x 24 mm (Full-Frame) BSI Stacked CMOS

    Image Stabilization

    Sensor-Shift, 5-Axis

    ISO Sensitivity Range

    100 to 51,200 (Extended: 50 to 102,400)

    Internal Recording Modes

    Raw 12-Bit
    DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/50/59.94 fps
    DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
    H.264/MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit
    DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps
    UHD 8K (7680 x 4320) at 23.98/25/29.97 fps
    DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps
    UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps
    DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps
    1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps

    Show MoreExternal Recording Modes

    4:2:2 10-Bit via HDMI
    DCI 4K (4096 x 2160) up to 59.94 fps
    UHD 4K (3840 x 2160) up to 59.94 fps

    Media/Memory Card Slot

    Slot 1: CFexpress Type B (CFexpress 2.0) [2 TB Maximum / VPG-400 or Faster Recommended]
    Slot 1: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]

    Video I/O

    1x HDMI Output

    Audio I/O

    1x 1/8" / 3.5 mm TRS Stereo Microphone Input
    1x 1/8" / 3.5 mm TRS Stereo Headphone Output

    Power I/O

    1x USB-C Input

    Other I/O

    1x USB-C (USB 3.2 / 3.1 Gen 2) Data Input/Output (Shared with Power Input)
    1x Canon N3 Remote Input
    1x PC Flash Sync Output

    Show MoreWireless

    2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0

    Display Type

    Articulating Touchscreen LCD

    Battery Type

    1x LP-E6P Rechargeable Lithium-Ion
    or
    1x LP-E6NH Rechargeable Lithium-Ion

RED KOMODO-X 6K

  • Lens Mount

    Canon RF

    Sensor Resolution

    Effective: 19.9 Megapixel (6144 x 3240)

    Image Sensor

    27.03 x 14.26 mm (Super35) CMOS

    Image Stabilization

    No

    Internal Recording Modes

    ProRes 422/ProRes 422 HQ/ProRes 422LT
    4096 x 2160 up to 120 fps [560 MB/s]
    ProRes 4444 4:4:4
    4096 x 2160 up to 80 fps [560 MB/s]
    ProRes 4444XQ 4:4:4
    4096 x 2160 up to 60.00 fps [560 MB/s]
    REDCODE RAW | REDCODE HQ/REDCODE LQ/REDCODE MQ
    6144 x 3240 up to 80 fps [560 Mb/s]
    5120 x 2700 up to 96 fps [560 Mb/s]
    4096 x 2160 up to 120 fps [560 Mb/s]
    2048 x 1080 up to 240 fps [560 Mb/s]

    Show MoreExternal Recording Modes

    4:2:2 via SDI/BNC
    DCI 4K (4096 x 2160) up to 60.00 fps
    DCI 2K (2048 x 1080p) up to 60.00 fps

    Media/Memory Card Slot

    Single Slot: CFexpress Type B (CFexpress 2.0)

    Video I/O

    1x BNC (12G-SDI) Output

    Mobile App Compatible

    Yes: Android & iOS
    App Name: RED Control
    Functionality: Remote Control

    Battery Type

    V-Mount

Canon EOS R3 Mirrorless Camera

  • Lens Mount

    Canon RF

    Sensor Resolution

    Actual: 26.7 Megapixel
    Effective: 24.1 Megapixel

    Image Sensor

    36 x 24 mm (Full-Frame) CMOS

    Image Stabilization

    Sensor-Shift, 5-Axis

    ISO Sensitivity Range

    Photo/Video
    100 to 102,400 (Extended: 50 to 204,800)

    Internal Recording Modes

    Raw 12-Bit
    6000 x 3164 at 23.98/24.00/25/29.97/50/59.94 fps [720 to 2600 Mb/s]
    H.264/MP4 4:2:0 8-Bit
    DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100 fps
    UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps
    1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps
    H.265/MP4 4:2:2 10-Bit
    DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100 fps [85 to 1880 Mb/s]
    UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [85 to 1880 Mb/s]
    1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps [28 to 470 Mb/s]

    Show MoreExternal Recording Modes

    4:2:2 10-Bit via HDMI
    DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
    UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps

    Media/Memory Card Slot

    Slot 1: CFexpress Type B
    Slot 2: SD/SDHC/SDXC (UHS-II)

    Video I/O

    1x Micro-HDMI Output

    Audio I/O

    1x 1/8" / 3.5 mm TRS Stereo Headphone Output
    1x 1/8" / 3.5 mm TRS Stereo Microphone Input

    Power I/O

    1x USB-C Input

    Other I/O

    1x RJ45 Data Output
    1x Canon N3 Remote Input
    1x USB-C Data Output (Shared with Power Input)

    Wireless

    2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control

    Display Type

    Articulating Touchscreen LCD

    Battery Type

    1x LP-E19 Rechargeable Lithium-Ion, 10.8 VDC, 2700 mAh
    or
    1x LP-E4N Rechargeable Lithium-Ion, 11.1 VDC, 2450 mAh

RED KOMODO 6K

  • Lens Mount

    Canon RF
    Canon EF with Included Adapter

    Sensor Resolution

    Effective: 19.9 Megapixel (6144 x 3240)

    Image Sensor

    27.03 x 14.26 mm (Super35) CMOS

    Image Stabilization

    No

    ISO Sensitivity Range

    250 to 12,800

    Internal Recording Modes

    REDCODE RAW
    6144 x 3240 up to 40 fps [280 MB/s]
    5120 x 2700 up to 48.00 fps [280 MB/s]
    4096 x 2160 up to 59.94 fps [280 MB/s]
    2048 x 1080 up to 120 fps [280 MB/s]
    ProRes 422/ProRes 422 HQ
    4096 x 2160 up to 59.94 fps
    ProRes 422
    2048 x 1080 up to 120 fps

    Show MoreExternal Recording Modes

    4:2:2 10-Bit via SDI/BNC
    4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
    3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
    1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
    2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps

    Show MoreMedia/Memory Card Slot

    Single Slot: CFast (CFast 2.0)

    Video I/O

    1x BNC (12G-SDI) Output

    Mobile App Compatible

    Yes: Android & iOS
    App Name: RED Control
    Functionality: Remote Control

    Battery Type

    Canon BP-9 Series

SONY FX3 Full Frame

  • Lens Mount

    Sony E

    Sensor Resolution

    Actual: 12.1 Megapixel
    Effective: 10.2 Megapixel

    Image Sensor

    35.6 x 23.8 mm (Full-Frame) CMOS

    Image Stabilization

    Sensor-Shift, 5-Axis

    ISO Sensitivity Range

    Video
    80 to 102,400 in Manual Mode (Extended: 80 to 409,600)

    Internal Recording Modes

    H.265 Long GOP/XAVC HS 4:2:2 10-Bit
    UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [50 to 280 Mb/s]
    H.265 Long GOP/XAVC HS 4:2:0 10-Bit
    3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [30 to 150 Mb/s]
    MPEG-4 AVC/XAVC S 4:2:2 10-Bit
    3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s]
    1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [50 Mb/s]
    MPEG-4 AVC/XAVC S-I 4:2:2 10-Bit
    4096 x 2160 at 1/2/3/6/12/23.98/24.00/29.97/48.00/59.94 fps
    UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/59.94/100/120 fps [240 to 600 Mb/s]
    1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [89 to 222 Mb/s]
    MPEG-4 AVC/XAVC S 4:2:0 8-Bit
    3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [60 to 200 Mb/s]
    1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [16 to 100 Mb/s]
    XAVC Proxy
    1920 x 1080 [9 to 16 Mb/s]
    1280 x 720 [6 Mb/s]

    Show MoreExternal Recording Modes

    Raw 16-Bit via HDMI
    4264 x 2408 at 23.98/25/50/59.94 fps
    3840 x 2160 at 23.98/25/50/59.94 fps
    1920 x 1080p at 23.98/25/50/59.94 fps
    1920 x 1080i at 50/59.94 fps

    Show MoreMedia/Memory Card Slot

    Dual Slot: CFexpress Type A / SD

    Video I/O

    1x HDMI Output

    Audio I/O

    1x 1/8" / 3.5 mm TRS Stereo Microphone Input
    1x 1/8" / 3.5 mm TRS Stereo Headphone Output
    2x XLR / 1/4" TRS Combo Microphone Input on Included Handle

    Power I/O

    1x USB-C Input

    Other I/O

    1x USB-C (USB 3.2 / 3.1 Gen 1) Data Output (Shared with Power Input)
    1x Sony Multi/Micro-USB Remote Input

    Wireless

    2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth, NFC

    Display Type

    Articulating Touchscreen LCD

    Battery Type

    1x Rechargeable Lithium-Ion

    Uses Sony Z-Series

Next
Next

Lenses
